Tool Setter Quick-Change Base

R52-HTS $329.00

Quick Change Adapter for Renishaw OTS Tool Setter
Includes Adapter Plate and 4x PS16F Pull Studs
Requires Any 52mm RockLock™ Base Unit (Sold Separately)
Enhances Tool Probe Removal and Relocation Efficiency

Features

Quick change adapter for the Renishaw OTS Tool Setter. Accurately remove and relocate the tool probe when its not in use. The part number includes the adapter plate and 4x PS16F pull studs. *Requires any 52mm RockLock™ base unit. **Tool setter sold separately.

Specs

Size: 125.73mm x 125.73mm x 30.48mm

Material: Steel

Weight: 1 lbs

Downloads

File Name	Size
3D Model	215 KB	Download Now

Reduce setup times by 80-95%.¹

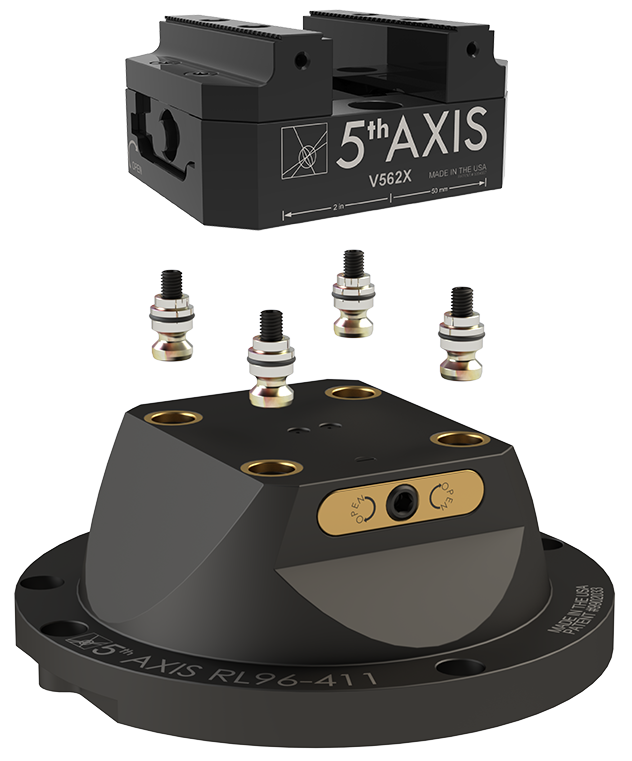

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

Built To Last

All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.

No replacement parts available.
