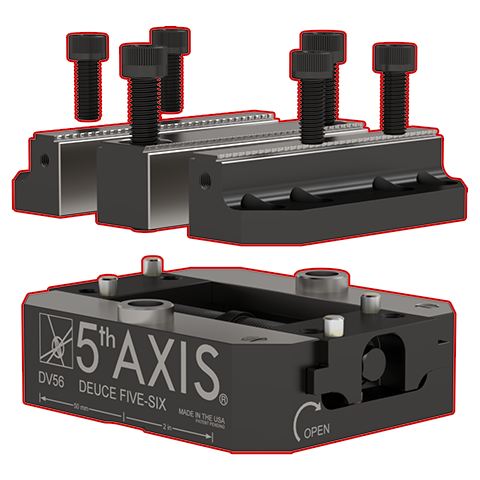

Medium Double Station Vise (125.7mm x 152.4mm x 72.9mm)

  • Size: 125.7mm x 152.4mm x 72.9mm
  • RockLock compatibility: 96mm
  • Negate variations in stock size with free-floating jaw system
  • Convert to single-station fixed jaw for huge clamping range
  • 45° dovetail and gripper teeth built into hard jaw


Size: 125.7mm x 152.4mm x 72.9mm
Jaw Width: 75mm
Clamping Force: 25.0 kN @ 75 Nm
Max Torque: 75 Nm
Clamping Range (Jaws Forward): 0 – 28.5mm
Clamping Range (Jaws Reversed): 31mm – 64.2mm
Clamping Range (Fixed Jaw, Forward): 0 – 75.9mm
Clamping Range (Fixed Jaw, Reversed): 56.8 – 147.3mm
Weight: 16 lbs
