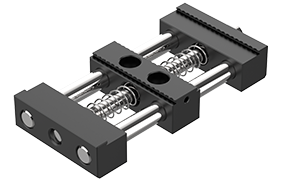

Pin Vise (75mm x 161.1mm x 25mm)

  • Size: 75mm x 161.1mm x 25mm
  • RockLock compatibility: 96mm
  • The double-station pin vise
  • Extreme low-profile design
  • Light weight- Great for tombstones + Automation
  • Serrated gripper teeth with optional dovetail built in
  • Direct mount from top down with SHCS and Dowels


Size: 75mm x 161.1mm x 25mm
Jaw Width: 75mm
Clamping Range: 150: 1.85” – 2.25”, 130: 1.50” – 1.85”, 100: 1.00” – 1.40”, MAX: 2.50” CUSTOMER PURCHASED HARDWARE, *Off the shelf M12 SHCS can be purchased in varying lengths extend the clamping range.
Max Torque: 35 ft lb
Clamping Force at Max Torque: 3708 lbf
Note: *PVX3-6A pin vises come with three different bolt lengths to provide different clamping range options.
Weight: 4 lbs
