DM12 Dovetail Top Tooling
R96-DM12 $892.00- Advance your machining with 5th Axis RockLock™ 96mm Top Tooling.
- Perfect for milling round stock in a vertical setup.
- Fits ER40 collets for easy stock clamping.
- Made from tough alloy steel for precision and strength.
Features

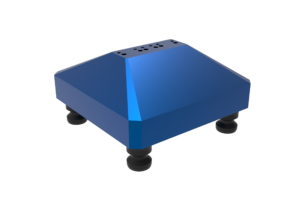

Invest in the future of machining with our 5th Axis RockLock™ 96mm Quick Change Top Tooling System. Stay competitive, boost your productivity, and achieve exceptional results in your machining operations. Trust in our commitment to quality, precision, and innovation, and take your machining capabilities to new heights today. The R96-DM12 is the smallest 96mm dovetail fixture in the 5th Axis workholding line. The DM12 features a wedge style clamp for superior gripping force and a low-profile design that optimizes tool clearance. This micro dovetail fixture is the perfect choice for multi-axis work on smaller parts.
Downloads
| File Name | Size | |
|---|---|---|
| 2D Drawing | 150 KB | Download Now |
| 3D Model | 107 KB | Download Now |
| DM12 Dovetail Stock Preparation | 1 MB | Download Now |
Only 16 left in stock (can be backordered)
Rocklock™
Time = Money
Reduce setup times by 80-95%.1
Swap Vises & Fixtures Quickly.
A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.
High Accuracy
Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)
Standardize Your Setups.
Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.
Simplify Programming.
Established work offsets help speed up programming time when adjusting for different jobs and top tooling.
Easy Integration.
Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.
Built To Last
All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.
Smooth Operation
All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.
FAQ
Consider your part size, machine table space, and automation needs. Use single-station vises for flexibility or double-station vises to maximize density.
No, 96mm top tooling is only compatible with 96mm RockLock™ bases. For 52mm systems, use the corresponding 52mm top tooling options.
The 96mm RockLock™ system provides ±0.005mm (±0.0002″) repeatability for high-precision applications.
The pull studs and the quick-change base must be from the same manufacturer, but the top tooling is interchangeable. The 96mm spacing, counter bore and thread size are common between competitive systems.
