D362 Dovetail Top Tooling
R96-D362$1,232.00- Size: 6” x 4.95” x 2.225”
- Fixture: D362
- Pull studs: 4x PS20F
Features

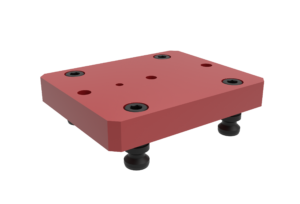

RockLock™ 96mm Top Tooling – D362
1ea: R96-D362-1 [Riser]
1ea: D362 [Fixture]
4ea: PS20F [Pull Studs]
Downloads
| File Name | Size | |
|---|---|---|
| 2D Drawing | 68 KB | Download Now |
| 3D Model | 1 MB | Download Now |
| D362 Dovetail Stock Preparation (1) | 1 MB | Download Now |
Available on backorder
Rocklock™
Time = Money
Reduce setup times by 80-95%.1
Swap Vises & Fixtures Quickly.
A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.
High Accuracy
Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)
Standardize Your Setups.
Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.
Simplify Programming.
Established work offsets help speed up programming time when adjusting for different jobs and top tooling.
Easy Integration.
Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.
Built To Last
All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.
Smooth Operation
All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.
FAQ
Consider your part size, machine table space, and automation needs. Use single-station vises for flexibility or double-station vises to maximize density.
No, 96mm top tooling is only compatible with 96mm RockLock™ bases. For 52mm systems, use the corresponding 52mm top tooling options.
The 96mm RockLock™ system provides ±0.005mm (±0.0002″) repeatability for high-precision applications.
The pull studs and the quick-change base must be from the same manufacturer, but the top tooling is interchangeable. The 96mm spacing, counter bore and thread size are common between competitive systems.
