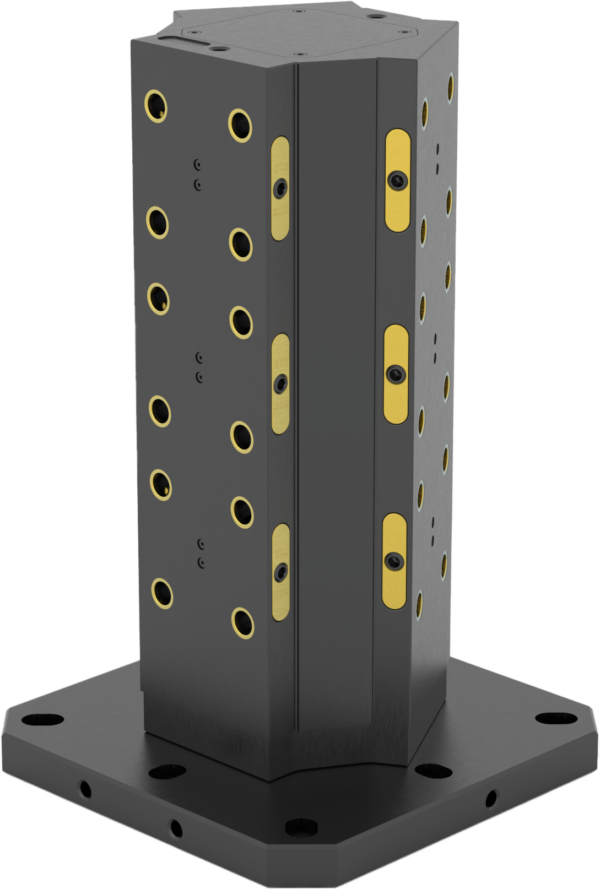

400mm Three-Sided RockLock™ Tombstone, Aluminum

RL96A-4003 $4,895.00
  • Lightweight Aluminum Construction
  • All Units Feature Hardened Steel Internals and Locating Features
  • Industry Standard 96mm Pull Stud Spacing
  • Adaptable Design for Pallet Exchange Systems with Low Weight Restrictions
  • Perfect for 400mm Horizontal Machining Centers
  • Baseplate with 80mm Grid Spacing for Secure Mounting



The Worlds 1st Integrated Quick-Change CNC Tombstone

Maximize your machining processes with the 400mm fully integrated 96mm RockLock™ Quick-Change CNC Tombstone from 5th Axis. Designed with the modern machinist in mind, this advanced four-sided aluminum tombstone offers unparalleled versatility and performance, ensuring that your production process is both swift and seamless.

Key Features:

Innovative Quick-Change System: The 96mm RockLock™ Quick-Change mechanism allows for rapid switching between different setups, drastically reducing downtime and enhancing productivity. The 96mm interface ensures a secure and repeatable lock, guaranteeing consistent accuracy with every change.

Robust Construction: Crafted from high-quality aluminum, this tombstone combines lightweight properties with exceptional durability. The material choice not only reduces the overall weight but also provides excellent resistance to corrosion, making it ideal for rigorous machining environments.

Superior Clamping Force: The RockLock™ system ensures an outstanding clamping force, providing the stability needed for heavy-duty machining operations. This stability reduces vibrations and enhances the precision of your cuts, leading to superior quality in your finished products.

Flexible Configuration: The 96mm RockLock™ Quick-Change CNC Tombstone is compatible with a wide range of fixtures and vises, offering you the flexibility to tailor your setup according to the specific requirements of your projects. Whether you are working on small batches or high-volume production, this tombstone adapts to your needs.

Easy Integration: Designed for seamless integration with your existing CNC machinery, this tombstone simplifies the setup process, allowing you to get up and running quickly. Its user-friendly design ensures that even complex configurations can be achieved with minimal effort.

Applications:

Aerospace Manufacturing: Precision and efficiency are crucial in the aerospace industry. The RockLock™ Quick-Change CNC Tombstone facilitates high-accuracy machining of complex components, ensuring top-tier quality.

Automotive Parts Production: Increase the speed and accuracy of automotive component manufacturing with this versatile tombstone, perfect for both prototyping and mass production.

Medical Device Fabrication: For the stringent demands of medical device production, this tombstone offers the reliability and precision needed to produce intricate parts with consistent quality.

Why Choose 5th Axis?

At 5th Axis, we are committed to delivering cutting-edge solutions that enhance your machining capabilities. Our 96mm RockLock™ Quick-Change CNC Tombstone is a testament to our dedication to innovation, quality, and customer satisfaction. Experience the difference that superior engineering and thoughtful design can make in your manufacturing process.



Size: 230mm x 230mm x 600mm
Material: Aluminum
Mounting: 80mm grid
# of Positions: 9 total, 3 per side
Weight: 175lb
Weight: 170 lbs

Available on backorder

ADD TO QUOTE

The Power Of
Modular Tombstones

01
Repeatable Platform

02
Universal Spacing

03
Stable Support

Why Choose Rocklock™?

Flexibililty
Simple Design
Easy Programming

Maximize Parts Per Cycle

Run more parts per cycle. Eliminate unnecessary tool changes and rapid moves by running multiple parts per cycle. Reduction of part handling is a big benefit gained by utilizing a horizontal cnc. Modular tombstones further those benefits, by making changeover and setup times shorter and more efficient.

Shop Now

Tombstones of all sizes

We see tombstones as a simplified version of automation. With that said, we designed tombstones for all sizes and types of cnc machines. Our original designs were built for small and medium 4th axis machines. The line has quickly grown to encompass vertical and horizontals up to 500mm.

Shop Now

FAQ

Our tombstones are precision-machined from high-quality cast iron or aluminum, depending on the model. Each unit is designed for rigidity, repeatability, and thermal stability in demanding machining environments.

5th Axis tombstones are compatible with either the 52mm RockLock™ quick-change system or 96mm RockLock™ quick-change system (industry-standard).

Yes, our tombstones are designed to be modular and compatible with 5th Axis self-centering vises and many other industry-standard workholding solutions.

• Cast Iron: Ideal for heavy-duty machining with high stability and vibration damping.
• Aluminum: Great for lighter-duty or high-speed applications where reduced weight and easier handling are preferred.

We offer a variety of sizes (300mm-500mm) including double sided, triple and quad-sided tombstones. Visit the product page for specific model dimensions.

The RockLock™ quick-change system allows you to rapidly swap tombstones or vises with precise repeatability, cutting down setup time and increasing machine uptime.
