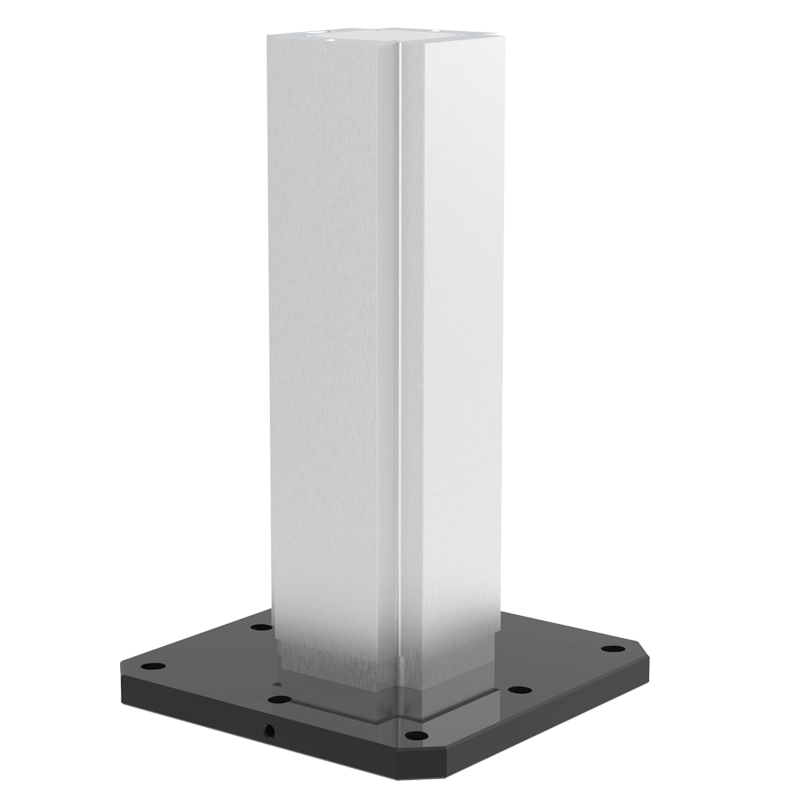

MTA-5004U-800 Four-Sided Machinable Tombstone, Aluminum
MTA-5004U-800$1,999.00- MT-5004U-800 is designed to be one of the most robust and competitively priced 500mm machinable aluminum tombstones in the world.
- This tombstone provides a sturdy and cost-effective solution for your machining needs.
- Its 500mm size makes it versatile for various applications.
- Precision machining capabilities make it a reliable choice for machining setups.
Features
Size: 234mm x 234mm x 800mm Base: 500mm x 500mm
Material: Aluminum
Mounting: Machinable
Weight: 203.79lb
Specs
Downloads
| File Name | Size | |
|---|---|---|
| 2D Drawing | 137 KB | Download Now |
| 3D Model | 634 KB | Download Now |
Out of stock
The Power Of
Modular Tombstones
01
Repeatable Platform
02
Universal Spacing
03
Stable Support
Why Choose Rocklock™?
Maximize Parts Per Cycle
Run more parts per cycle. Eliminate unnecessary tool changes and rapid moves by running multiple parts per cycle. Reduction of part handling is a big benefit gained by utilizing a horizontal cnc. Modular tombstones further those benefits, by making changeover and setup times shorter and more efficient.
Tombstones of all sizes
We see tombstones as a simplified version of automation. With that said, we designed tombstones for all sizes and types of cnc machines. Our original designs were built for small and medium 4th axis machines. The line has quickly grown to encompass vertical and horizontals up to 500mm.
FAQ
Our tombstones are precision-machined from high-quality cast iron or aluminum, depending on the model. Each unit is designed for rigidity, repeatability, and thermal stability in demanding machining environments.
5th Axis tombstones are compatible with either the 52mm RockLock™ quick-change system or 96mm RockLock™ quick-change system (industry-standard).
Yes, our tombstones are designed to be modular and compatible with 5th Axis self-centering vises and many other industry-standard workholding solutions.
• Cast Iron: Ideal for heavy-duty machining with high stability and vibration damping.
• Aluminum: Great for lighter-duty or high-speed applications where reduced weight and easier handling are preferred.
We offer a variety of sizes (300mm-500mm) including double sided, triple and quad-sided tombstones. Visit the product page for specific model dimensions.
The RockLock™ quick-change system allows you to rapidly swap tombstones or vises with precise repeatability, cutting down setup time and increasing machine uptime.
