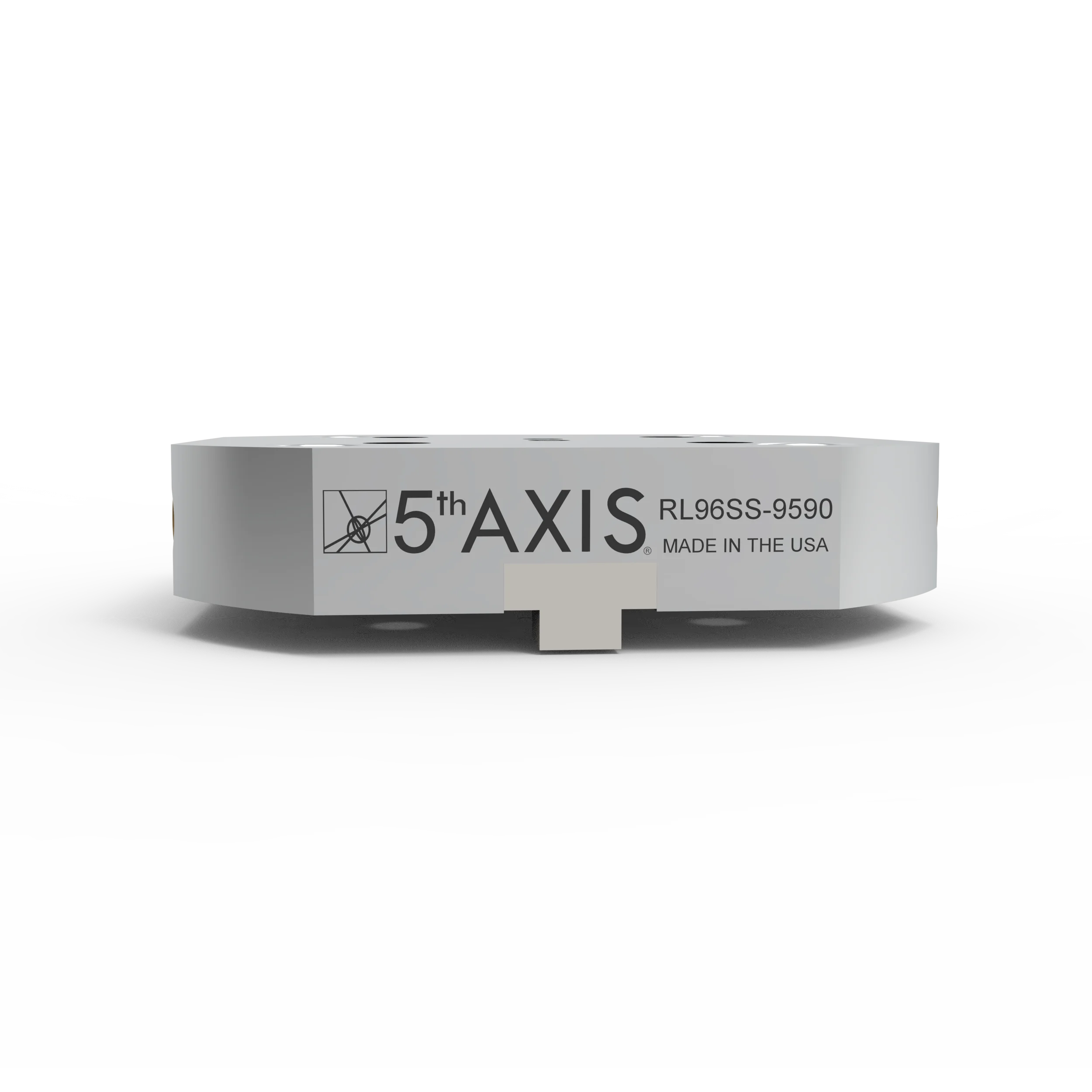

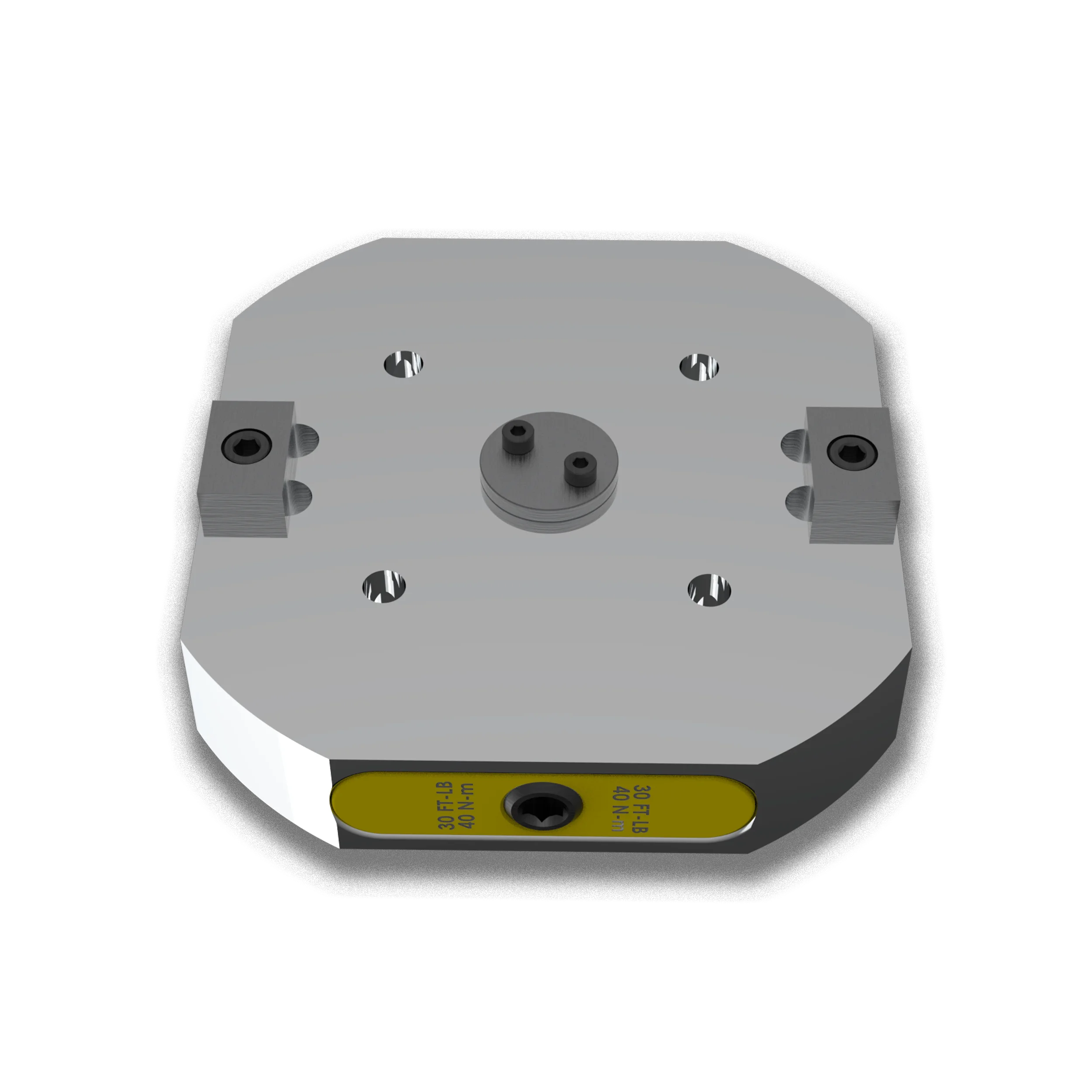

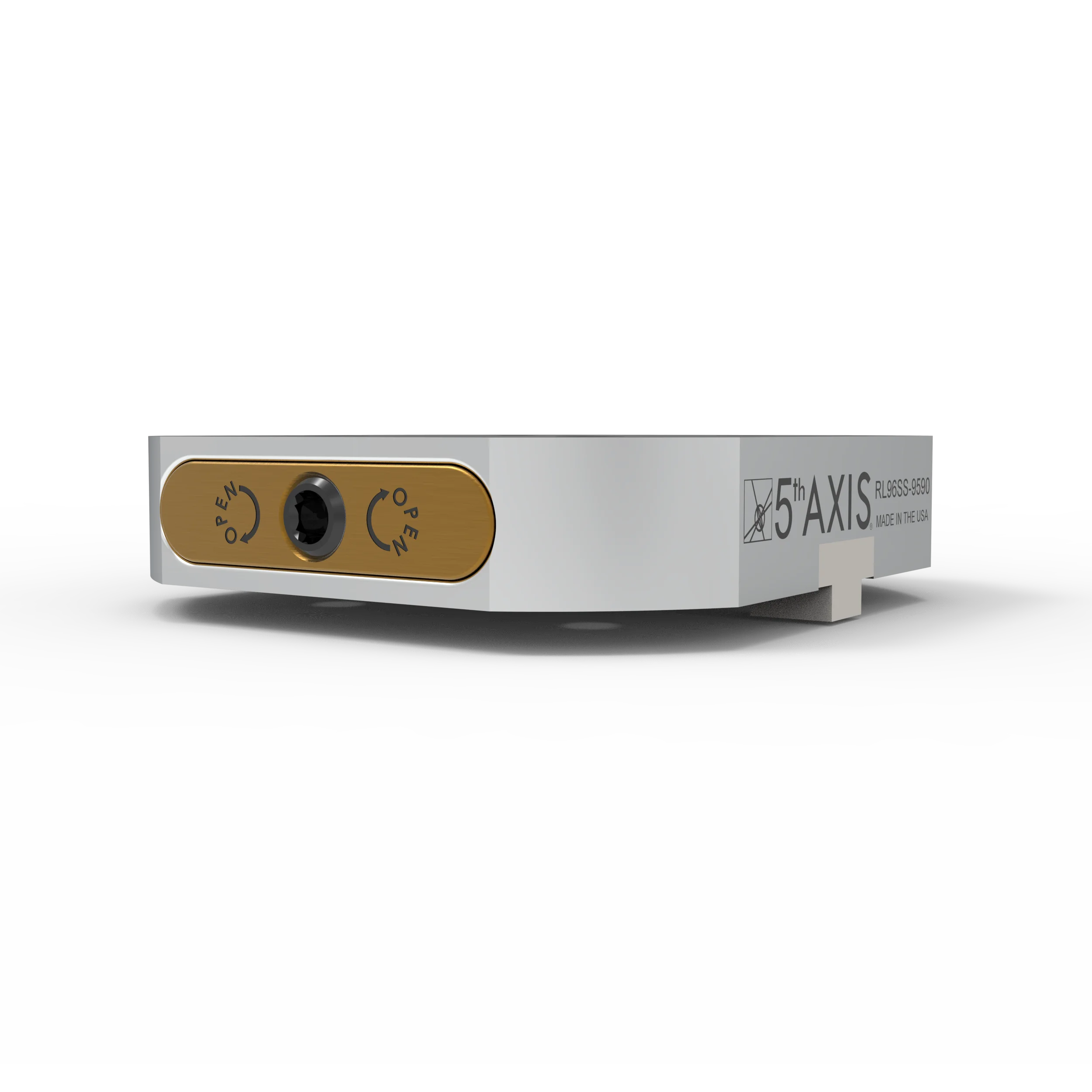

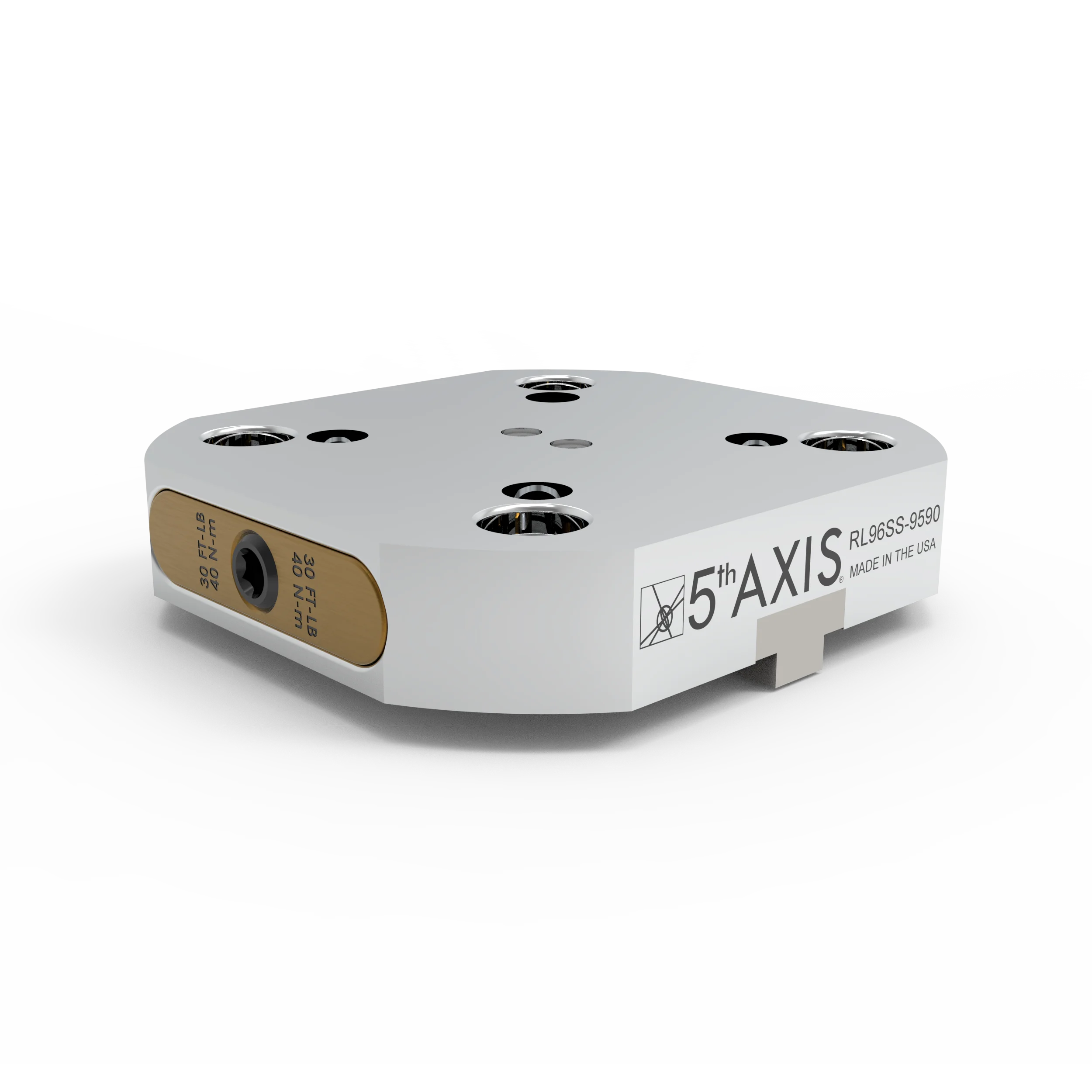

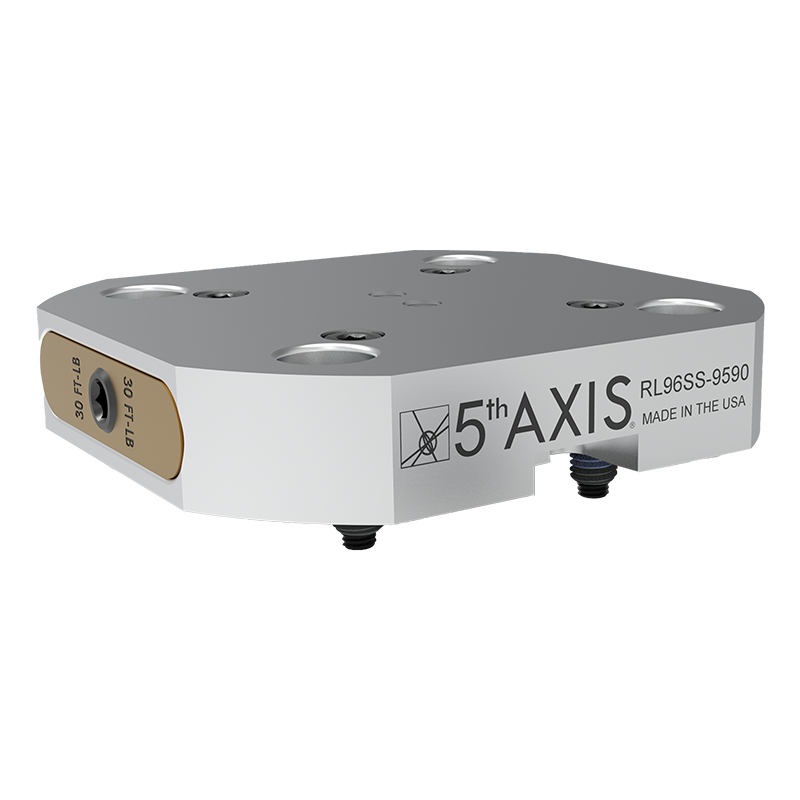

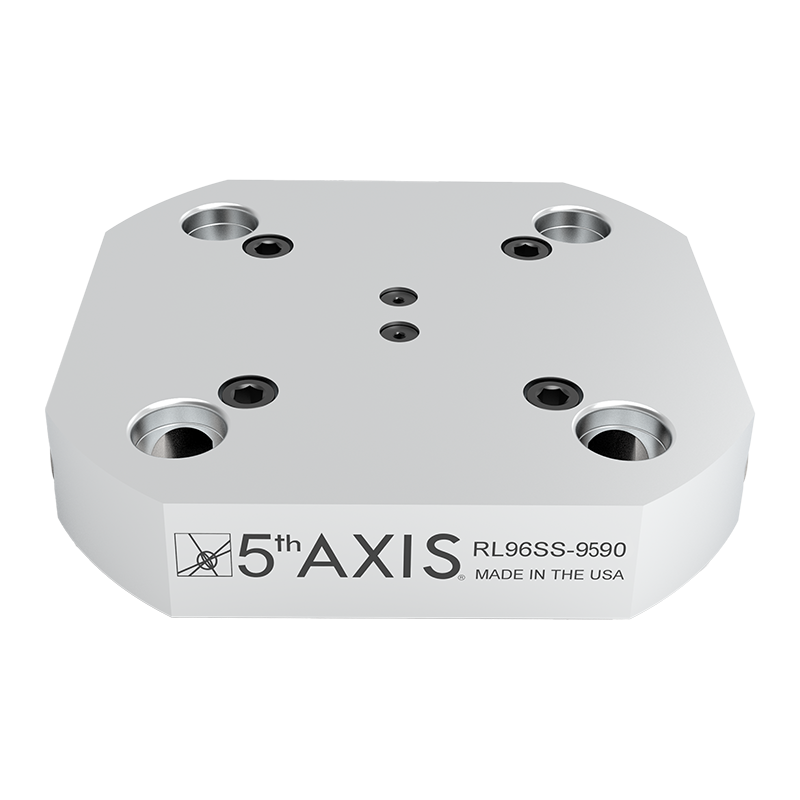

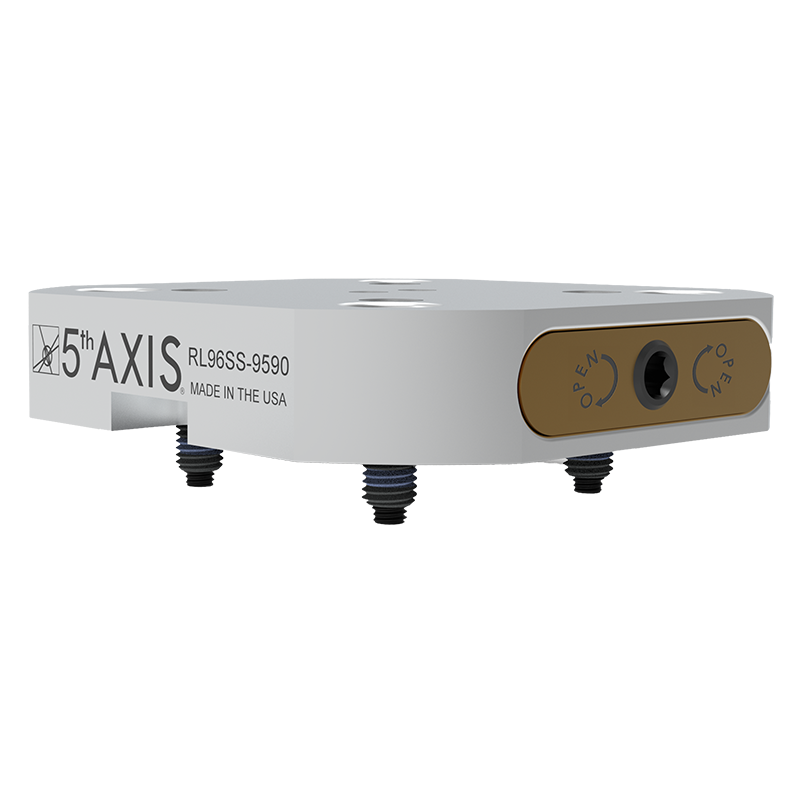

96mm Low Profile Adapter, Stainless Steel (Mounting: 4× M8 or 5/16″-18 at 90° on 95mm BCD)

RL96SS-9590$999.00
  • Hardened Stainless Steel Construction
  • Industry Standard 96mm Pull Stud Spacing
  • Adaptable Design for Machining Setup
  • Hardened Steel Body and Internals for Precision and Durability
  • RL96-66 Quick Change Adapter for Compatible Matsuura machines and the Makino DA300 5-Axis Vertical Machining Center

Built for compatible Matsuura models and the Makino DA300 machine, this RockLock™ base is designed to improve repeatability, simplify changeovers, and maintain precision in high-mix production. The stainless steel construction provides durability and long-term performance in production environments. A Ø30mm centering spud and two alignment keys control position and rotation. Installs with included E-Z Lok threaded inserts and socket head cap screws for proper alignment on compatible Matsuuura machines and Makino DA300 machine.

Compatible models:
Matsuura: MAM72-25V, MAM72-35V, MAM72-42V, CUBLEX-25, CUBLEX-35, MX-330, and MX-420
Makino: DA300 5-Axis Vertical Machining Center

Size: 156mm x 148mm x 30mm
Material: Hardened Stainless Steel (SS)
Mounting: 4x M8 or 5/16"-18 at 90° on 95mm PCD. E-Z Lok inserts included to adapt from M12 and 1/2"-13
Shipping Weight: 10 lbs
Crate Dimensions (in): 9 × 8 × 2
File NameSize
2D Drawing 278 KBDownload Now
3D Model 4 MBDownload Now

Available on backorder

ADD TO QUOTE

Rocklock™

Time = Money

Reduce setup times by 80-95%.1

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.

Shop Now

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Shop Now

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

PS20F PULL STUD PRINT

Built To Last

All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.

FAQ

We’ve designed RockLock™ plates in a variety of styles to perfectly fit your CNC machine. Whether you need low-profile plates, multi-position plates, risers, pyramids, tombstones, or right-angle adapters, RockLock™ is available in nearly any configuration you can imagine. Use our 3D machine configuration tool to find the best RockLock™ setup for your machine.

You should expect a pull-down force of 2000lb preload at each pull stud. There are four pull studs in every RockLock™ quick-change system.

When the leadscrew is tightened using an Allen wrench, the clamping pull studs are pulled down by two free float cam pieces. The precision OD on the pull stud is located on the precision ID of the RockLock™ plate and the cam pieces locks the pull stud into position.

Yes, the RockLock™ quick-change system uses the industry standard 52mm or 96mm pull stud spacing. This allows interchangeability between competitive systems. Each manufacturer has a different patent on the cam system and how it interacts with the pull stud. This means that the base plate and the pull stud must be from the same manufacturer, but the vises and top tooling are completely interchangeable.

Ensure your RockLock™ base (RL96 or RL52) is securely mounted to your machine table or tombstone.
Engage the pull studs into the RockLock™ system by actuating the clamping mechanism (typically via a torque wrench).
Utilize a dial indicator or probe to touch off on the top and sides of the master pallet. Use the clearance holes to loosen or tight the masterpallet and continue to adjust until the master pallet is in alignment with your machine.

We do not put a specific weight limit on the system. Here are so considerations when looking at the weight of your workpiece:
Clamping Force & Holding Torque – Systems like RockLock™ use pull studs and clamping mechanisms rated for specific loads. The 96mm system, for example, is designed to handle significant forces and is suitable for heavy-duty applications.
Workpiece & Fixture Weight – While the RockLock™ system can handle hundreds of pounds, the machine table’s load capacity often becomes the limiting factor.
Dynamic vs. Static Loads – While a system may hold a heavy static load, high-speed machining and cutting forces introduce dynamic loads that can impact stability.
Machine Table Limitations – The weight of the fixture + workpiece should not exceed the machine’s table weight rating.

Yes, the RockLock™ system was built to be open source and compatible with existing subplates and fixturing. We know fixturing and tooling is expensive and we designed the system to make existing subplates and fixtures adaptable to the RockLock™ system. We will provide you with the drawings to easily prep your fixtures to work with the RockLock™ system.
